Taping Machine + feedy
The Automatic Packing Station

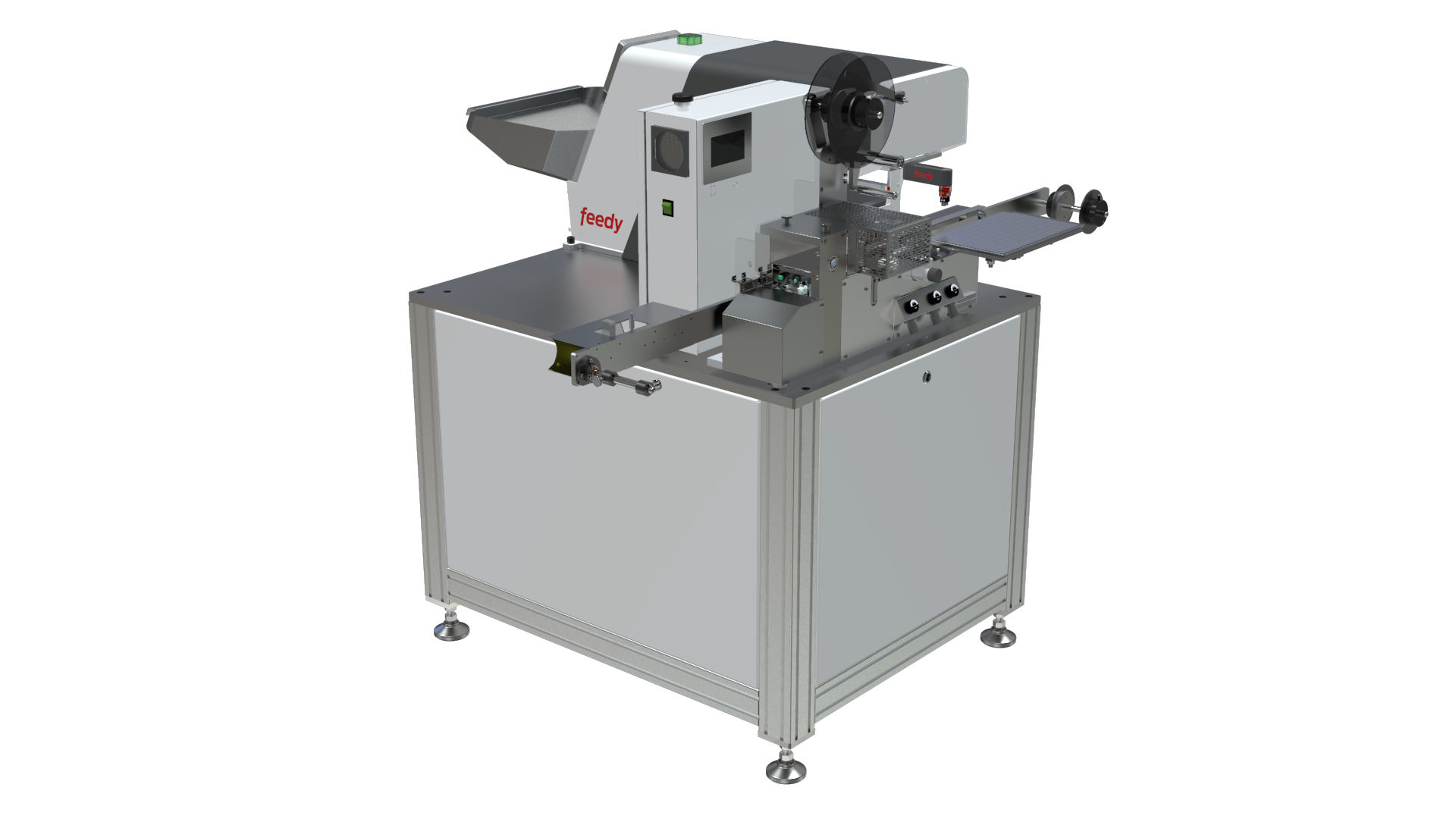

Combine the K-TECH taping machine BK05 with the flexible feeding system feedy from PARO and your components are automatically placed into the carrier tape. The operator only has to set up the two parts of the system – taping machine and feedy - to the component to be taped and start the automatic run.

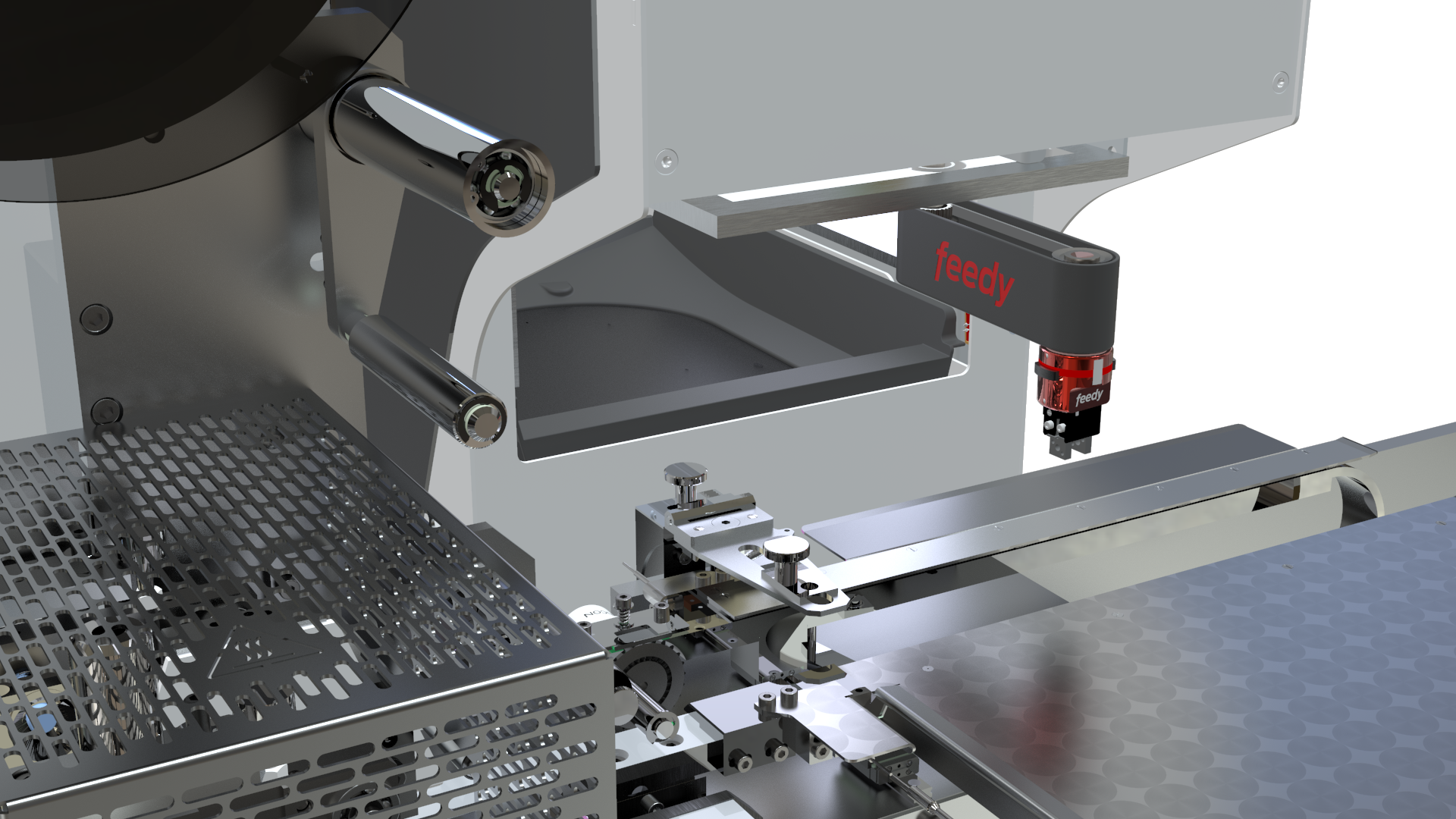

feedy combines all components of flexible feeding technology in one compact device. Thanks to integrated image recognition and robotics, feedy is much more versatile than conventional feeding systems, with similar installation dimensions and comparable price. Each unit is configured at our plant specifically for your components.
This guarantees high process reliability, simple installation and very fast commissioning.
check Benefit from maximum flexibility, reliability and a delivery time of just a few weeks.
Application
| Component size | 3 mm up to 50 mm maximum edge length |
| Component weight | max. 30 g |
| Thinnest zones | protruding shaped element ≥ 0.3 mm |
| Output | up to 40 components/min. |
| Condition | dry, clean, unmixed (no foreign parts), non-magnetized |
Technical Data
| Type | feedy taping maching |
| Electrical connection | 1x 230 VAC ±10% / 50Hz |
| Power consumption | 0.9 kW |
| Backup fuse | 10 A |
| Air pressure | 5 – 6 bar |
| Compressed air quality | dry (condensation-free, oil-free) |
Performance data*
| Output | up to 40 component/min. |
| Operation | ca. 1/4 person |
Dimensions
| Dimensions | 1,450 x 1,570 x 1,384 mm |
| Weight | ca. 300 kg |
